20-Inch 8 Bolt Single Piece Carbon Steel Manway Cover, North American Arrangement

Part #: TMC20301C101

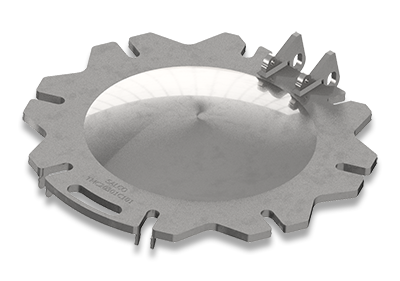

Salco Products (TMC20301C101) 20-Inch 8 Bolt Single Piece Carbon Steel Manway Cover with Mill Finish features a 3/4-inch thick, carbon steel, manway cover. The manway has eight (8) 1-1/64-inch eye bolt slots on a 23-1/4-inch bolt circle with an AAR #1 style gasket groove. Also includes two (2) carbon steel manway hinges, and carbon steel manway safety stops. Length from the center of the manway cover to the center of the hinge bolt holes is 13.38-inches. Fits North American OEM nozzle arrangement. AAR Approval # E-182113.

Key Features

  • Available in 8 bolts patterns, it can be installed on most major tank car manufacturer nozzle arrangements.
  • ASTM A572 Grade 50 Steel.
  • Stronger one piece design eliminates the potential for leak paths.
  • Attachment for Lift Assist device already built in.
  • Shorter lead times than fabricated designs.
  • Can provide custom packaging for shipment.
  • Paintable.
  • AAR#1 style gasket groove.
  • Fully customizable; can add threaded ports and safety vent bosses.
  • Will seal hard and elastomeric gaskets.
