2-Inch Flanged Stainless Steel Top Fitting Assembly

Part #: TE2SU75FS07A

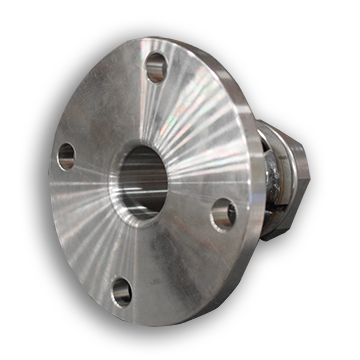

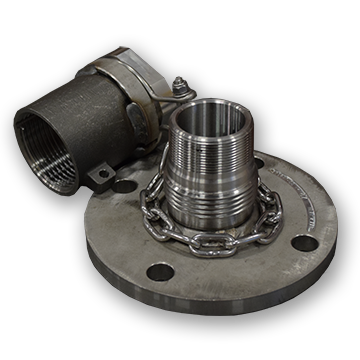

Salco Products (TE2SU75FS07A) 2-Inch Flanged Stainless Steel Top Fitting Assembly, fits an outlet with four (4) 1-inch bolt holes on a 7-1/2-inch bolt circle. The flange is made out of 316L stainless steel features a 2-inch male NPT and a 2-3/4-inch 6 UN -2A thread. The 2-inch quick connect thread on cap is made out of 316L stainless steel, and features slot cut in threads for pressure relief. Comes with 1/4-inch by 2-1/2-inch, 18-8 stainless steel S-hook, a 2-inch, 304 stainless steel, lock ring, two (2) 1/4-inch SAE, 18-8 stainless steel, flat washers, a 1/4-inch by 1-1/4-inch, zinc plated carbon steel, hex bolt, a 1/4-inch, 18-8 stainless steel hex lock nut, and a 1/4-inch, 18-8 stainless steel, chain link with 18 links. Comes with a black Viton B dust cap gasket.

Key Features

  • Provides direct connection to kam and groove or threaded hoses.
  • 1", 2" and 3" sizes.
  • Dual Thread design has cap closure on separate threads, extending the life of the hose connection NPT by 50%.
  • Designed to provide a secure fitting that will minimize leaks and spills.
  • DOT (threaded) and AAR (kammed) approved designs.
  • Assemblies include adapter, cap, chain and gaskets.
  • Available in Stainless Steel or Ductile Iron.
  • 416SS cap with 316SS adapter to prevent galling.
  • Contact your Salco Representative for the specific adapter types and sizes that will fit your needs.
