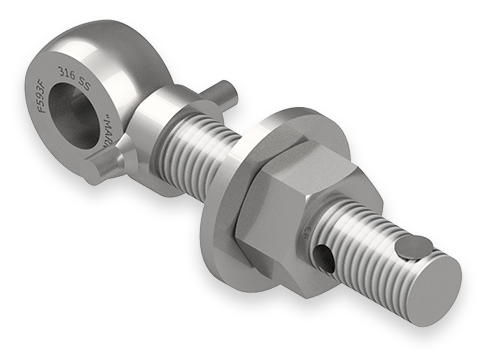

1 x 6-Inch Stainless Steel Eyebolt Assembly with a Seal Hole, Collar and Huck Rivet, Heavy Hex Nut

Part #: EB16XHAS6TCP

Salco Products (EB16XHAS6TCP) 1 x 6-Inch Stainless Steel Eyebolt Assembly with Seal Hole, Collar and Huck Rivet, Heavy Hex Nut features a, 316 stainless steel, eyebolt that is 1-inch in diameter and 6-inches in length with a 13/32-inch seal hole. The eyebolt has 1-8 UNC -2A rolled threads with the length of 4-3/4-inches. The inner diameter of the eye is 15/16-inches, with the outer diameter being 2-inches. Includes a 1-inch, 304 stainless steel, collar as well as a 1-inch, 416 stainless steel, heavy hex nut, and a 1-inch, 316 stainless steel, flat washer with 2-1/2-inch outer diameter. There is a 1/4-inch x 13/16-inch, 304 stainless steel, huck rivet at the end of the threads to prevent the heavy hex nut from coming off.

Key Features

  • Fits most OEM Manway configurations.
  • Standard eyebolts can be customized to your specifications.
  • 3/4-Inch to 1-Inch diameters available.
  • 4-Inch to 7-Inch lengths available.
  • Variety of different safety mechanisms available.
  • Hex and square nuts available.
